Automatische Rohr-Füllung und versiegelnde Maschine
Created with Pixso.

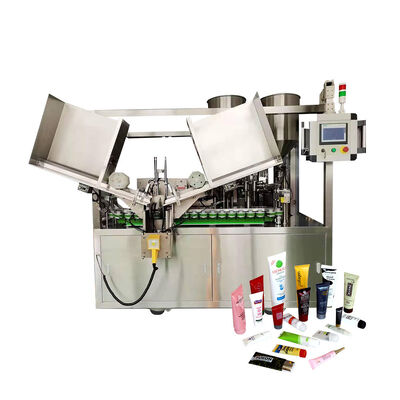

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Markenbezeichnung: LTPM China
Modellnummer: LTRG-Serie
MOQ: 1 Satz
Preis: Verhandlungsfähig
Zahlungsbedingungen: L/C, T/T
Versorgungsfähigkeit: 15Set/Monat
Ausführliche Information
Herkunftsort:
China
Zertifizierung:
CE
Automatische Note:
Automatisch
Stromspannung:
380(220)V/50Hz
Material:
SUS 304/316L
Produktionskapazität:
25-40 Stück/Min
Motor:
1,5 kW
Rohrhöhe:
50-250mm
Gewicht:
300kg
Abmessung (L*B*H):
1500*700*1800mm
Verpackung Informationen:
Exportieren Sie eine Standard-Holzkiste
Versorgungsmaterial-Fähigkeit:
15Set/Monat
Hervorheben:

automatic toothpaste tube filling machine

,

plastic tube sealing machine

,

Chinese tube filling machine manufacturer

Beschreibung des Produkts
Introduction
The automatic tube flling machine is mainly used to flling ointment materials into cylindrical, capped tubes of Aluminum or Composite and seal the tubes ends. In compliance with the standard of GMP dosing pump is a new type stainless steel butterfly valve for ointment flling a screw fine adjustment device is privided, so the ointment weighing is accurate. Thanks to the Adption of the sophisticated accurately and reliably, change frequency to control the machine speed, Used FuKaiShen index drives and international advanced tube sealing systems.

Product Parameter
Power Supply 50Hz/380V 3P
Speed 80-120 pieces/min
Filling Range 3-250 g
Pipe Length 50-210mm
Pipe Diameter 13-50mm
Pressure 0.5-0.6MPa
Machine Size 2550mmx1420mmx2115mm
Weight 2200Kg

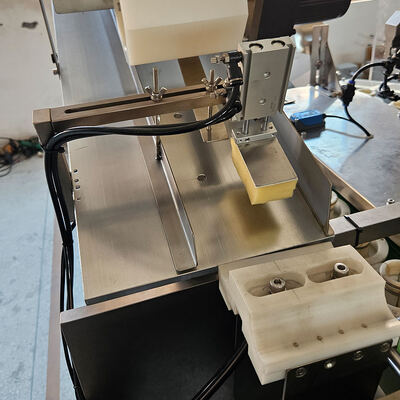

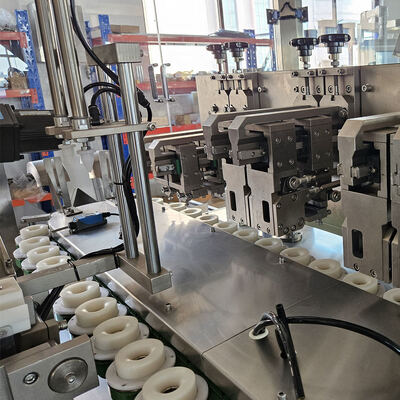

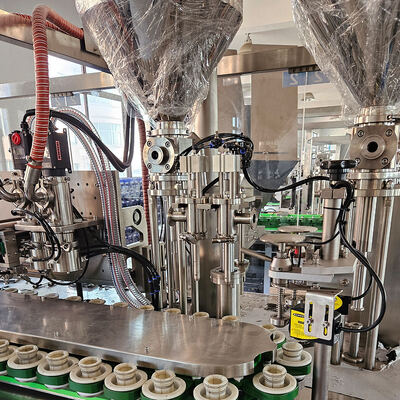

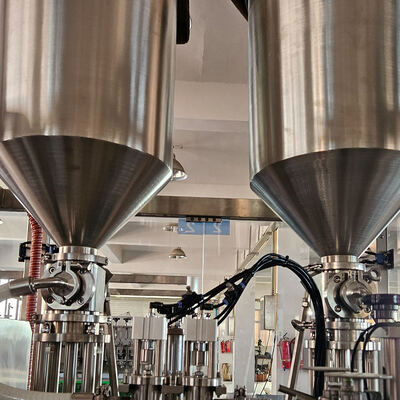

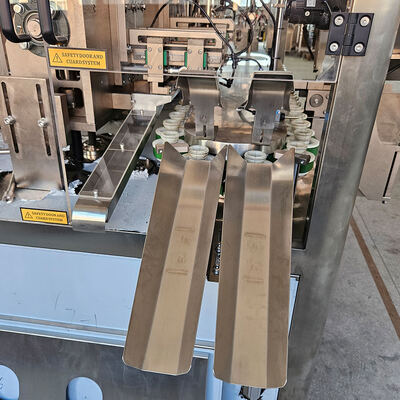

Product Structure

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine 0
